5-Axis & 3+2 Axis: Professional 5 Axis CNC Machining Solutions
✓ Large Work Range: 600×400mm / 800×500mm ✓ High Precision: 0.005mm Accuracy Standard
Professional 5 Axis CNC Machining Solutions: Efficient and Precise Manufacturing Choice
- Two Machining Travels – 600×400mm and 800×500mm meet precision machining needs for parts of various sizes, with accuracy up to 0.005mm and support for plastics, aluminum, iron, and stainless steel.
- Single-Clamping Forming – complex surfaces are formed in one clamping, significantly reducing non-processing time; the equipment maintains optimal tool cutting angles, avoids manual calculation errors, and simplifies programming for medical devices, aerospace components, and automotive parts.
- Zero-Wear Technology – features zero mechanical wear and no mechanical transmission parts, ensuring stable operation, reduced maintenance costs, micron-level positioning accuracy with no backlash, and consistency in mass production.

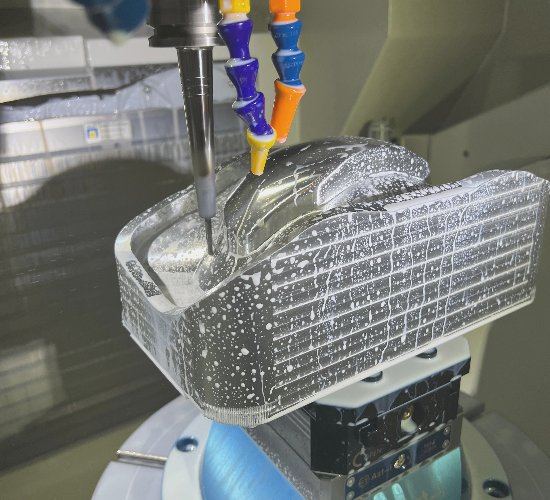

5-Axis Simultaneous Machining: Ultra-Precision Service
- Ultra-High Precision – 0.005mm accuracy with an N6 grade surface finish.
- 800×500mm Processing Range – for various materials including plastics, aluminum, iron, and stainless steel.
- Single-Setup Efficiency – complete complex surface forming in a single setup reduces process errors and improves production efficiency by over 50%.

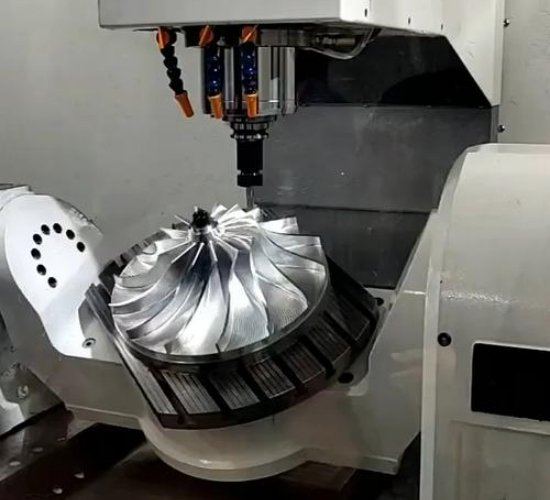

Cost-Effective 5 Axis CNC Machining Solution (3+2 Axis)
- Ideal for Small Batches – complex parts with moderate precision requirements (0.005mm), supporting plastics, aluminum, iron, stainless steel, and more.
- 600×400mm Range – meets most part needs with better cost-effectiveness than 5-axis simultaneous machining.
- Faster Lead Times – multi-face processing in one setup via indexing significantly reduces lead times for complex low-volume parts.

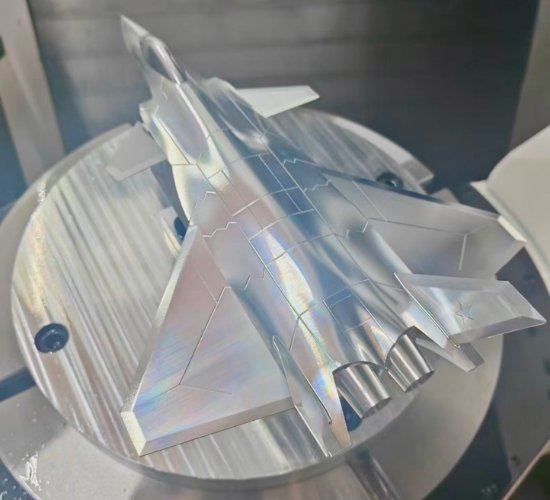

Ensuring Excellence Through Precision Inspection
- Laser Positioning Detection – rigorous X/Y/Z-axis laser positioning detection and ballbar RTCP linkage verification ensure ±0.003mm positioning accuracy.
- A/C-Axis Angle Verification – laser angle detection on the A/C axes validates rotary accuracy.
- CMM Full-Process Monitoring – coordinate measuring machines provide full-process quality monitoring for complex surface parts.

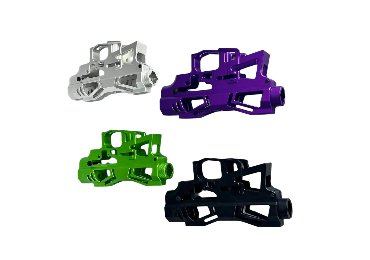

Case of Customized Parts by 5 Axis CNC Machining
Flexible order options: 1-piece MOQ for 5-axis machining, 7-day prototype delivery, and small-batch support for efficient product launches.
- 1-Piece Minimum Order – no MOQ for 5-axis CNC machining.
- 7-Day Prototype Delivery – rapid 5-axis machining services.
- Small-Batch Support – efficient product launches with 5-axis manufacturing.
5 Axis CNC Machining part
5 Axis CNC Machining auto parts
5 Axis CNC Machining auto parts
5 Axis CNC Machining auto parts
5 Axis CNC Machining brackets part
5 Axis CNC Machining steel part
Finishing & Materials Capabilities for 5 Axis CNC Machining Parts
Post-processing options and material coverage for 5-axis machined parts.
Mechanical Treatment
- Polishing — Smooth surface, mirror-like finish
- Sand Blasting — Uniform matte texture, improved adhesion
- Brushing — Consistent linear grain, scratch resistance
- Buffing — High-gloss finish, deburring capability
Chemical Treatment
- Anodizing — Enhanced corrosion and wear resistance
- Electroplating — Metallic coating, improved conductivity
- Surface Etching — Precise pattern creation, anti-slip properties
Coating Processes
- UV Coating — Hard protective layer, scratch resistance
- Overmolding — Soft-touch surface, impact absorption
- Hot Stamping — Metallic foil transfer, decorative effect
- Heat Transfer Printing — Complex pattern application, durability
Marking & Printing
- Screen Printing — Permanent graphic application
- Laser Engraving — Precise permanent marking, high resolution
- Leather Grain — Simulated leather texture, aesthetic appeal
Plastics
- ABS — Good toughness, easy to paint and bond
- PC — High strength, transparency, impact resistance
- PE — Chemical resistance, low friction
- POM — High rigidity, wear resistance, dimensional stability
- PP — Lightweight, chemical corrosion resistance
- Acrylic (PMMA) — High transparency, easy to polish and cut
- Nylon — Wear resistance, self-lubricating
- Bakelite — Electrical insulation, heat resistance
- Silicone Rubber — Flexibility, high temperature resistance
Metals
- Aluminum Alloy — Lightweight, good thermal conductivity
- Zinc Alloy — High fluidity, good casting performance
- Magnesium Alloy — Extremely lightweight, high strength-to-weight ratio
- Titanium Alloy — High strength, corrosion and heat resistance
- Steel — High strength, wear resistance, versatile
- Copper — Excellent conductivity, corrosion resistance
- Stainless Steel — Corrosion resistance, high strength, durability
- Sheet Metal — Good formability, suitable for stamping and bending
Efficiency and Cost Advantages of 5-Axis CNC Machining
1. Machining Time Reduction
Impeller machining case comparison:
- Traditional 3+2-axis: 12 hours (3 setups)
- 5-axis CNC machining: 4 hours (single setup)
Efficiency improvement: 66%
2. Fixture Cost Savings
- Reduced dedicated fixture requirement by 80%
- Tooling cost reduction for small-batch orders by 50% with 5-axis CNC machining
3. Scrap Rate Control
- Simulation pre-verification system reduces trial-and-error cost to 1/3 of traditional methods
- Batch production scrap rate <0.1% with 5-axis CNC machining
Industry Applications
Shipbuilding
5-axis machining integrally forms large marine curved components, enhancing corrosion resistance and hydrodynamic performance.
High-End Molds
Directly forms deep-cavity and undercut mold structures, significantly shortening development cycles.
Medical Devices
Delivers high surface precision and anatomical adaptation for biocompatible medical materials.
Aerospace
Single-setup forming of complex curved surfaces, balancing lightweight and high-strength requirements.
Precision Instruments & Electronics
Achieves micron-level precision, supporting miniaturization and functional integration of electronic devices.
Defense & Military
Handles complex geometries in high-hardness military materials, ensuring tactical reliability.
Energy Sector
Provides high-precision integrated manufacturing for large corrosion-resistant energy components.
Automotive Manufacturing
Efficiently processes complex curves, optimizing strength-to-weight ratios and multi-material compatibility.
5 Axis CNC Machining Service Advantages
CNX Precision 5-Axis CNC Machining provides optimal solutions for complex part manufacturing through three key dimensions: unleashing geometric freedom, breaking precision limits, and revolutionizing process efficiency. We have established technological barriers in aerospace complex structures, medical personalized implants, and high-end mold cavities, upgrading the traditional “segmented manufacturing-assembly” model to an integrated “monolithic forming-precision machining” paradigm.
Validation Data:
Decision Criteria for Choosing 5-Axis CNC Machining:
- ✓ Complex curved surfaces and multi-angle featured parts
- ✓ Requirement for multi-face machining in a single setup
- ✓ Thin-wall, deep-cavity, and overhanging structures
- ✓ High-value materials with significant machining risks
- ✓ Small-batch, multi-variety production
- ✓ Pursuit of high-surface quality with zero tool-mark transitions
How to initiate a 5 Axis CNC Machining project?
Customers provide detailed drawings in STP, X_T, or IGS format for technical feasibility review and requirements clarification by presales engineers.
What information of 5 Axis CNC Machining is needed for the quotation process?
After drawing confirmation, engineers provide transparent quotations based on material, precision requirements, and quantity.
If the 5 Axis CNC Machining Processing order is confirmed?
After quotation confirmation, the customer places an order and signs the agreement, with production scheduling activated simultaneously.
