Your Full-Solution Partner for PTFE CNC Machining
At CNX Precision, we leverage a complete equipment matrix and deep process expertise to provide customized CNC machining services for PTFE parts across industries such as medical, semiconductor, chemical, and precision fluid handling. From micro-seals to 3.5-meter long plates, and from simple turning to 5-axis simultaneous curved-surface machining, we deliver a one-stop, high-reliability PTFE CNC machining solution.

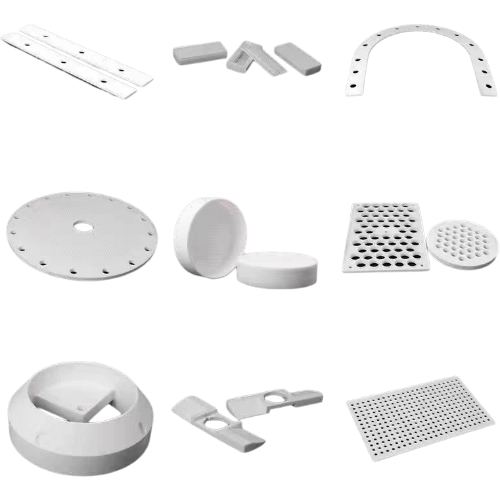

Solutions for PTFE Machining Challenges
- High-Precision 3-Axis CNC Machines – Including Haas 4SS (±0.003 mm), dedicated to high-accuracy PTFE CNC Machining.
- Specialization – Precision PTFE CNC Machining of seals, insulators, and semiconductor fixtures.
- Key Techniques – Optimized cutting parameters, dedicated and sharp tooling specifically for PTFE CNC Machining.
- Result – Controlled micro-deformation, dimensional accuracy, and clean edges from our PTFE CNC Machining process.
- Industry Standards – Our PTFE CNC Machining meets the stringent requirements of medical, semiconductor, and other high-demand industries.
- Ideal For – Efficient, cost-effective small- to medium-batch production through professional PTFE CNC Machining.

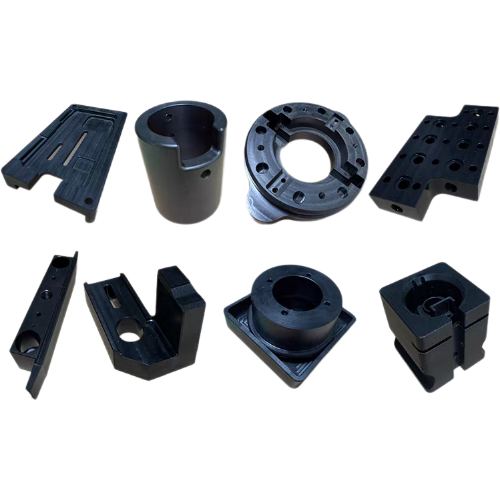

Core Capability for Complex PTFE CNC Machined Parts: Multi-Axis & Compound Machining
- Multi-Axis Equipment: machining centers in 4-axis ×3, 3+2-axis ×1, and 5-axis ×1 configurations, specialized in complex components such as special-shaped valve cores and medical catheter connectors.
- Single-Setup Forming: multi-face forming in one setup with 5-axis simultaneous motion completely eliminates tool-path marks, ensuring micron-level geometric accuracy of complex flow channels and sealing surfaces.
- Zero-Leakage Sealing: the process delivers reliable PTFE sealing structures for the medical, precision-fluid, and related industries.

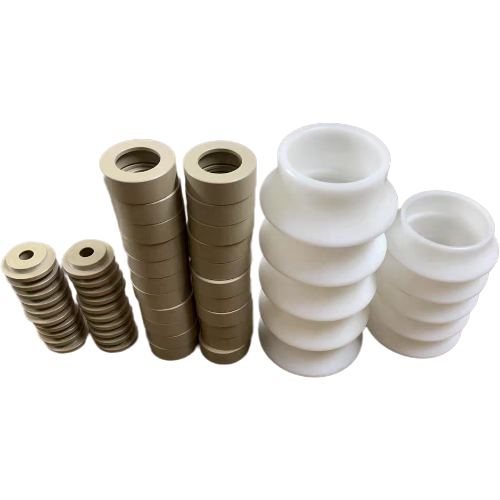

High Precision PTFE CNC Machining Solutions
- 19 CNC Lathes: 13 Swiss-type (diameter ≤ 22 mm), 5 turn-mill centers, and 4 universal/turret lathes, specializing in PTFE CNC machining of rotary parts.
- Micro-Deformation Control: roundness ≤ 0.005 mm, turn-mill integration, low-temperature cutting, and precision thread machining ensure dimensional accuracy (Φ 0.5–300 mm), surface finish (Ra 0.8–1.6 µm), and coaxiality (≤ 0.01 mm).
- Capacity & Cost Efficiency: 200,000+ parts monthly with < 30-minute changeovers; for batches > 100 pieces, costs drop 40% and accuracy consistency improves by over 50%.
CNC Customized PTFE Parts
Our PTFE CNC Machining Service: From Prototype to Production
PTFE CNC Machining Parts
PTFE CNC Machining Parts
PTFE CNC Machining Parts
PTFE CNC Machining Parts
PTFE CNC Machining Parts
PTFE CNC Machining Parts
PTFE CNC Machining Service Of Finishing
From polishing to functional treatment — the full range of post-processing and finishing options for PTFE machined parts.
Polishing Treatment
- Mechanical Polishing — High-gloss surfaces with over 92% transparency retention using specialized compounds
- Flame Polishing — Rapid edge treatment for thin-walled parts, with precise temperature control to prevent deformation
- Chemical Polishing — Uniform surfaces via chemical solvent treatment, suitable for complex geometries
Surface Modification
- Plasma Treatment — Increases surface energy to enhance adhesion between PTFE and other materials
- Corona Treatment — Improves surface wettability for better printing and coating adhesion
- Sodium-Naphthalene Treatment — Deep modification of PTFE surface chemistry, significantly improving bonding strength
Coating Treatment
- PVD Coating — Metallic or ceramic coatings for improved hardness, wear resistance, and conductivity
- Sputtering Coating — Functional thin films deposited in vacuum for special optical or electrical properties
- Spray Coating — Enhanced PTFE or other functional coatings for specific performance characteristics
Surface Texturing
- Sandblasting — Uniform matte surfaces, reducing glare and improving tactile feel
- Laser Texturing — Precise micro-surface patterns for anti-slip or decorative purposes
- Etching Texturing — Chemical etching to form specific surface structures, enhancing functional performance
Printing & Marking
- Screen Printing — Durable identification and pattern printing suitable for mass production
- UV Printing — High-precision color pattern printing with vibrant and durable colors
- Laser Marking — Permanent marking for serial numbers, barcodes, and traceability information
Functional Treatment
- Conductive Treatment — Surface metallization to impart electrical conductivity to PTFE
- Anti-Static Treatment — Anti-static coatings to prevent electrostatic accumulation
- Hydrophobic/Oleophobic Treatment — Enhanced surface repellency for improved self-cleaning capabilities
Why Choose Our PTFE CNC Machining Service?
- Full-Size Coverage: From micro seals to 3.5-meter large-format sheets — no need to coordinate multiple suppliers.
- Complete Process Solutions: Turning, milling, multi-axis compound machining — delivering complex assemblies in one stop.
- Ultra-High Precision: Core equipment accuracy up to ±0.003 mm, meeting stringent tolerances.
- Rapid Response: Prototypes in 3-7 days, small batches in 10-20 days.
- Reliable Quality: Complete quality-control system with a defect rate <0.1%.
Typical Industry Applications
• Medical Devices: Implant accessories, surgical instrument components, sealing interfaces
• Semiconductor: Etching-chamber liners, CMP retaining rings, cleanroom parts
• Chemical & Fluid Handling: High-purity seals, valve seats, pipeline connectors
• New Energy: Fuel-cell seals, special insulation components
Get Your Custom PTFE Machining Solution Now
If you require PTFE CNC machining, please provide your drawings. We will deliver a professional process-feasibility analysis and detailed quotation within 48 hours.
PTFE CNC Machining Service Advantages
We specialize in rapid-turnaround PTFE machining, supporting orders starting from 1 piece. Using PTFE-optimized tooling and thermal-deformation-controlled processes, we deliver functional prototypes in 7 days — ideal for design verification and functional testing.
For small-batch production, our flexible manufacturing system ensures efficient scaling while maintaining precision, surface quality, and material integrity, helping accelerate your time-to-market.
Q1: What is the biggest technical challenge in PTFE CNC machining?
A: The main challenge is controlling material thermal deformation. In PTFE CNC machining, we use low-temperature cooling systems and layered cutting processes to keep machining temperatures below 80°C, effectively preventing material softening and distortion.
Q2: How to ensure machining accuracy for thin wall PTFE parts?
A: In PTFE CNC machining, we employ vacuum-fixture clamping and symmetrical cutting strategies, combined with 0.005 mm precision inspection systems, ensuring deformation of thin-wall parts remains below 0.02 mm.
Q3: How to solve burr issues during PTFE machining?
A: During the PTFE CNC machining process, we use specialized diamond-coated tools with high-pressure air cooling, maintaining cutting speeds of 150-250 m/min to fundamentally reduce burr formation.
Q4: How to achieve precision machining of complex PTFE surfaces?
A: Using 5-axis simultaneous PTFE CNC machining technology, we achieve one-step forming of complex surfaces, with surface roughness as fine as Ra 0.8 µm and no tool-path marks.
Q5: How to ensure consistency in high-volume PTFE part production?
A: In batch PTFE CNC machining, we implement SPC process-control systems to monitor critical dimensions in real time, ensuring CPK ≥1.67 and a defect rate below 0.1%.
